A 159-unit lifestyle village including
community centre, bowling green, caravan storage and workshop.
The lifestyle village consists of a 6.0m wide road (shared zone) and various
services (sewer, stormwater, gravity recycled water, potable water, gas,
telecom, electrical, etc.) within the road. Service crossings (clearance and
cover) were extremely critical due to their proximity to each other and to
structural footings.The Solution
All services were

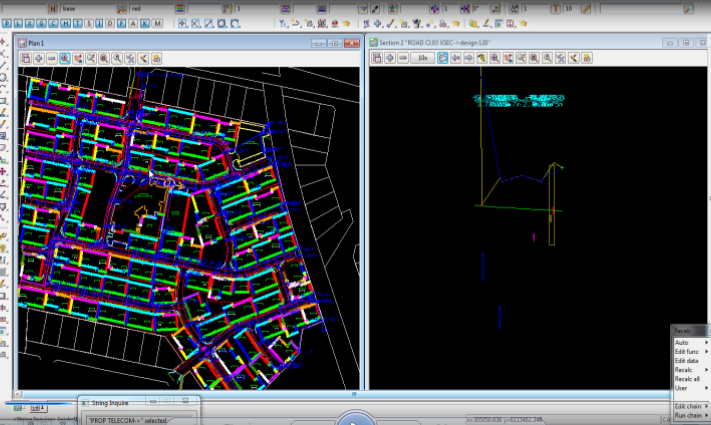

modelled in 12d, and all covers, service clash files set to the required
minimum. The cover file highlighted/identified areas requiring attention,
overcoming an issue which would normally be difficult to fix on such large
A viable design was created.
