Project Summary
The Rafting Courses and Surf Pool are the first project components being built
by Tamouh Investments, PLC and will form the first phase of their major
integrated development on this site.
The Challenge
A number of similar Whitewater Rafting facilities have been built elsewhere in
the world, normally to meet Olympic Games kayaking and canoeing event
requirements.
One or two large surfing Wave Pools have been built elsewhere, but this one will
generate some of the highest man made waves in the World.
As well as a commercially based Whitewater rafting facility, it is envisaged
that the facilities will encourage the growth of competitive kayak and canoe
paddling in the Middle East thereby providing nation building, sporting and
recreational facilities of the highest possible standard.
The Solution
The project at Jebel Hafeet will comprise ‘White Water Rafting Facilities’ and a
large Surf Pool, plus required support buildings. The Surf Pool will generate
waves to a height of 10 feet with a number of different wave patterns being
offered.

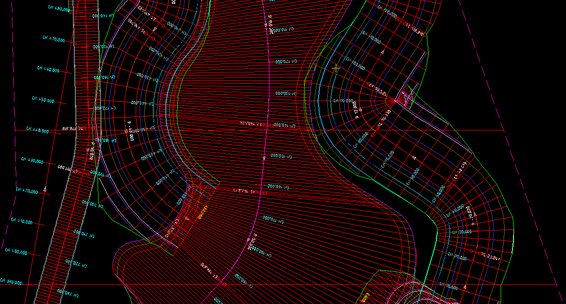

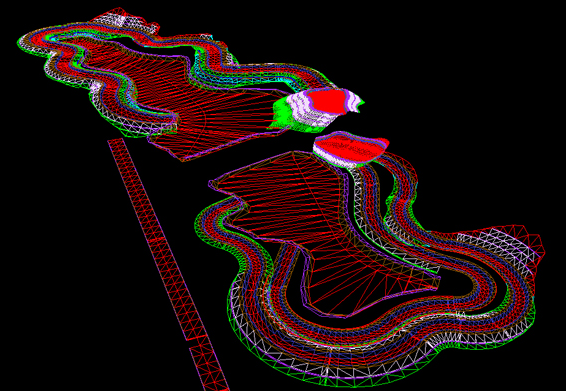

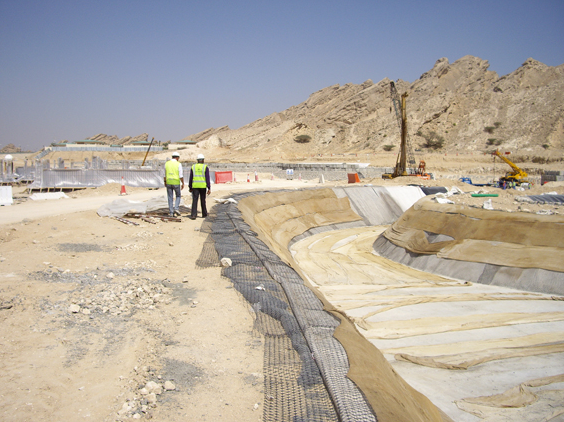

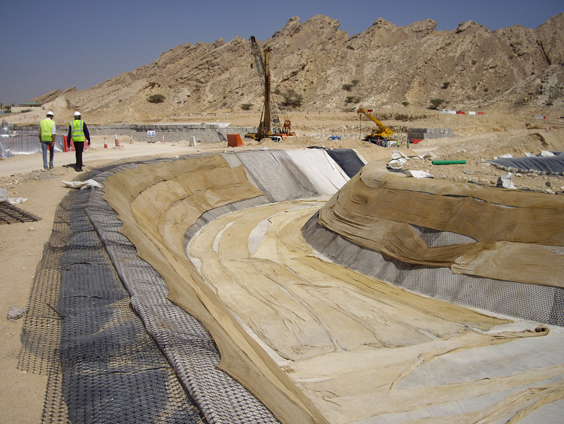

WHITEWATER RAFTING COURSES
There will be three courses:-
Green Run - An easier, beginners course, about 375m long
Blue Run - An intermediate course, also about 270m long
Black Run - An advanced course potentially meeting Olympic requirements some
488m long
Total length of runs 1,133 meters
There will be two conveyors to take craft to the top of the runs. One will
service the black run and the other both the Green and Blue courses. All three
courses will be suitable for rafts or kayaks.

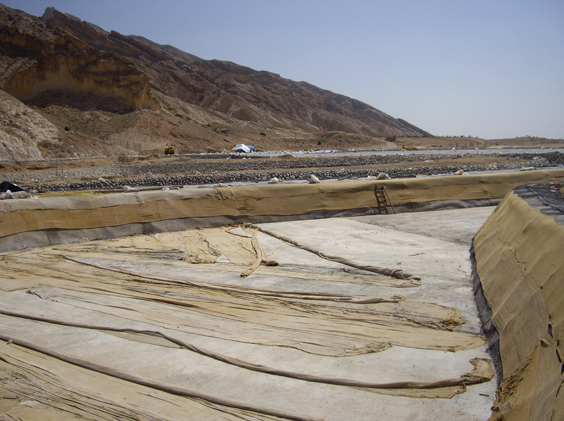

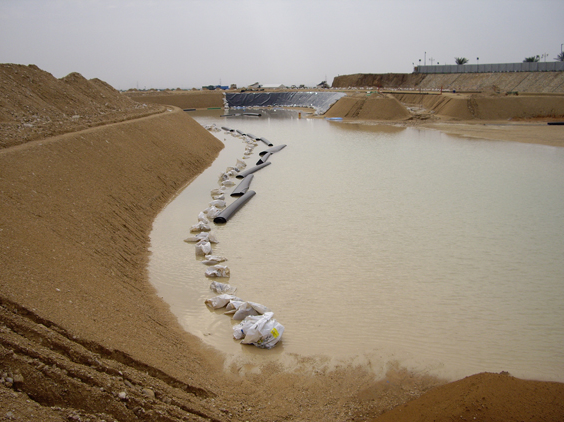

Two large lakes will provide the water to operate the runs; these are
approximately 2m deep and are sized at 10,058 s/m for Lake 1 and 6,249 s/m for
Lake 2, totalling 16,307 s/m.
A connection pipe will enable the water to be transferred from one lake to the
other in case this is ever required.
Water in the lakes will be maintained at a high quality by a water treatment
plant located under the pond that is the starting point for the black run.
SURF POOL
The surf pool will cover an area of approximately 6,000 s/m and be 2.5m deep at
the deepest end.
The beach area will be some 70m long.
The wave machinery will be capable of operating two separate systems – a
hydraulic system capable of generating surfing waves up to a height of 3.2
meters and a pneumatic system capable of generating a number of smaller waves
and different patterns more suited to the family market.

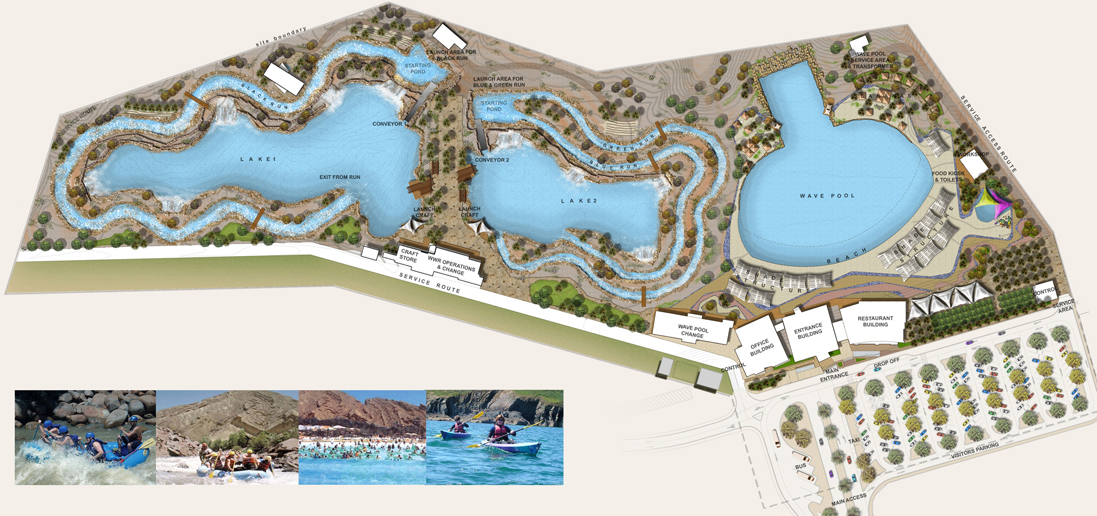

BUILDING's
The following buildings will be constructed:-
PUBLIC FACILITIES
Building 1 - Entry Building – This will provide ticketing and retail space
Building 2 - Restaurant - This is the only two storey building on site
Building 3 - Staff Office and Equipment Rental Building
Building 4 - Guest changing rooms, showers and toilets.
Building 5 - White water rafting operations building, contains hire craft,
briefing area and staff room
SERVICE BUILDINGS
Building 6 - Security and storage area – A back of house building
Building 7 - Workshop and drinks area for surf pool guests
Building 8 - Sub stations (3 in number)
Other - Plant and pump rooms

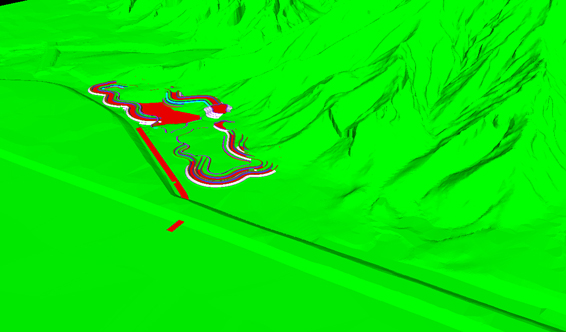

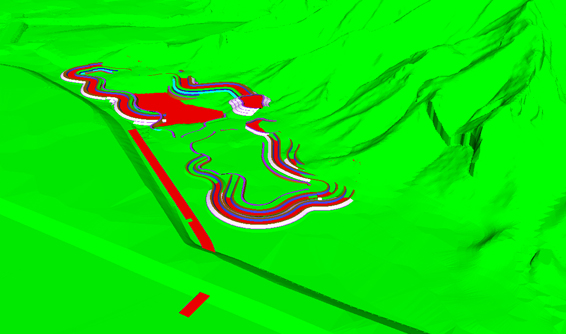

Area and Location
The project Jebel Hafeet White Water Rafting Facility is located approximately
22 kilometers from Al Ain city center near Green Mubazara. The total site area
is 130857 square metres.
The Result
In general, the facilities will have a positive impact on the Jebel Hafeet
tourist and visitor profile and assist in further establishing Al Ain as an
international tourist destination.
