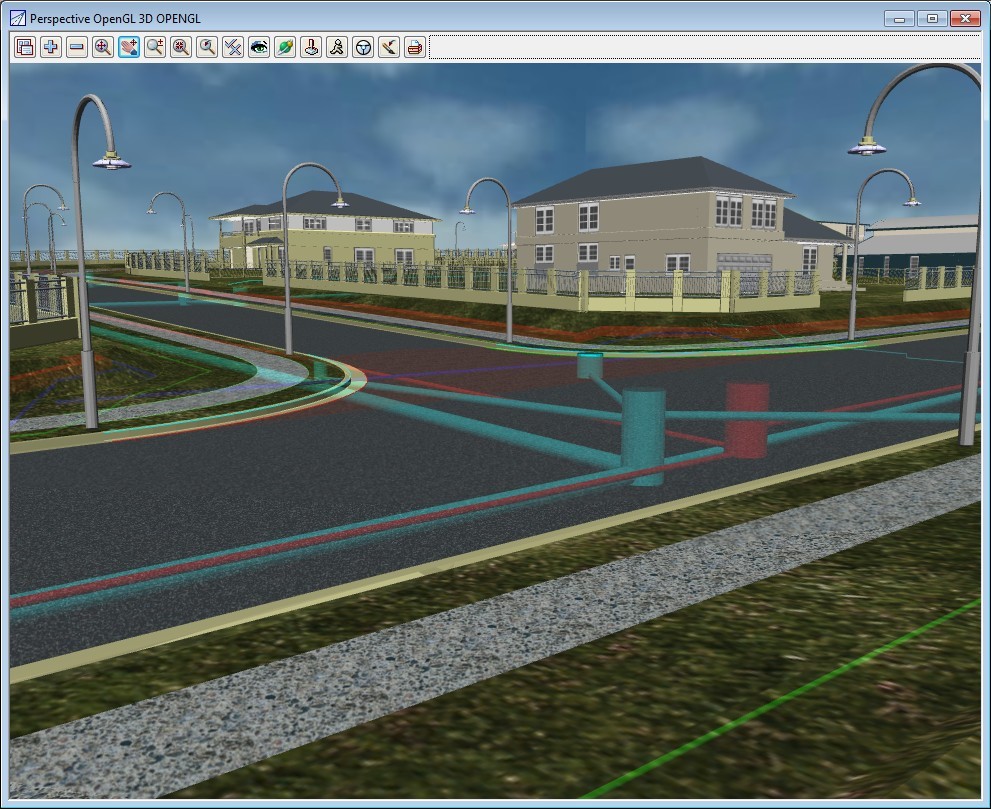

The Visualisation module uses Windows OpenGL to quickly produce realistic perspective scenes of your design. Surfaces can be shaded, photos draped onto the terrain, textures applied to triangles and shapes extruded along strings

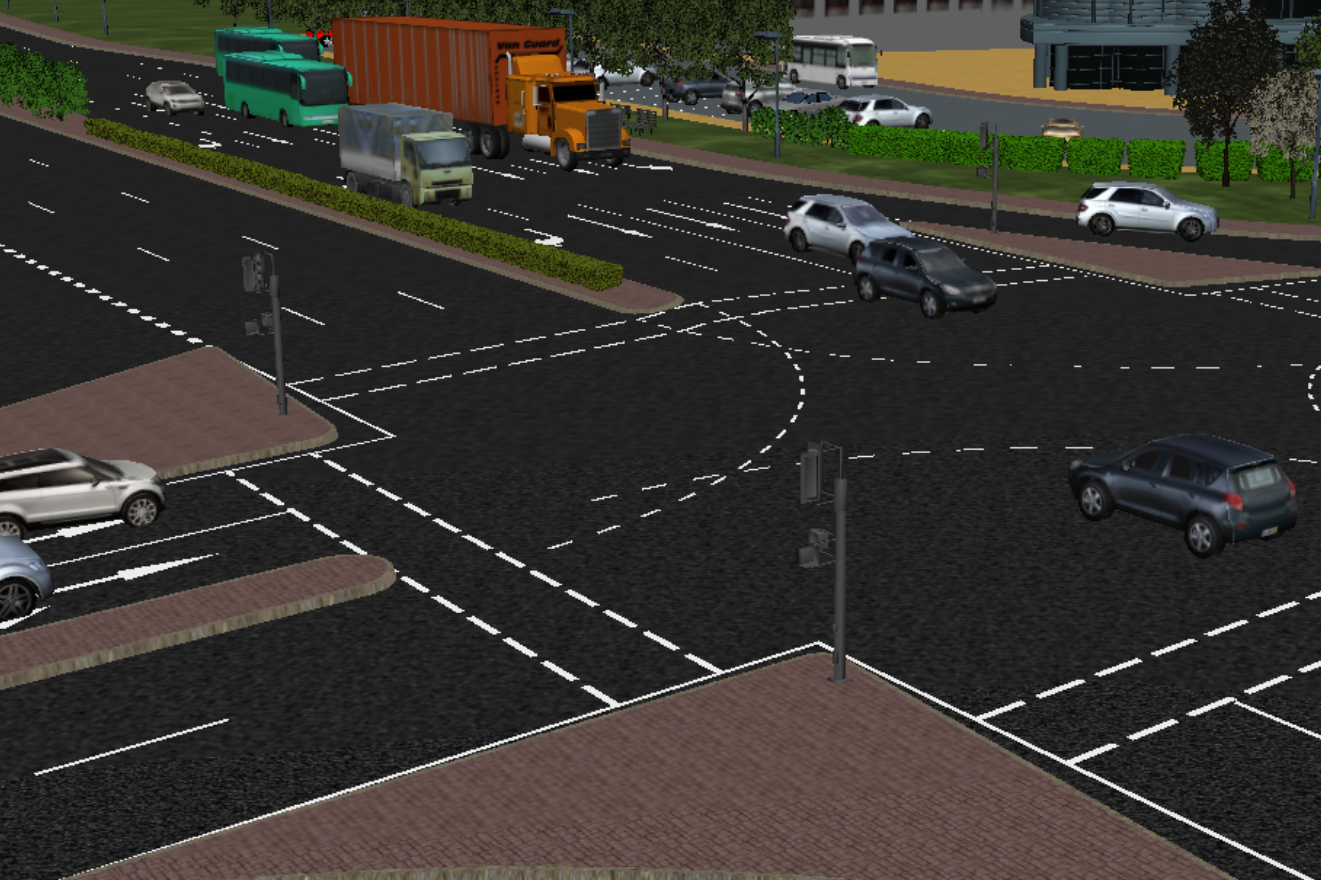

A rendered perspective view or drive through provides a realistic three dimensional image which is often the easiest way to convey a design to people who find engineering plans and contours difficult to interpret.

A library of objects such as trees, lights, guard rails, fences and walls is supplied with 12d® Model™ so that new users can immediately produce results. New objects can be created using faces and extrusions to cover almost all situations. Routines to create road line markings, signs and billboards complete the overall effect.

Timelines add moving cars and other objects to create realistic scenes. Drives down roads and fly overs can be written to video files for future replaying and use in presentations.
